M38A1"C" - 106 Recoilless Rifle Variant

(Jim Kelley - Reprinted with permission)

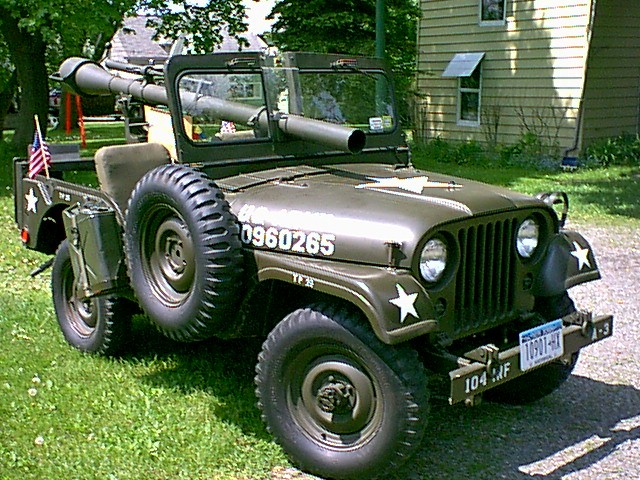

This 1952 M38A1 "C" model is owned by Mr. Ken Eaton.  The vehicle has a serial number of MD20407.

Mr. Ken Eaton, the owner of this 1952 M38A1 "C" model, or 106mm recoilless rifle variant is a part of his extensive collection of historic military vehicles located in Cortland NY.  The history of the vehicle is fairly well documented with an unknown person purchasing the vehicle as surplus from the Binghamton National Guard.  A second person then purchased the vehicle and completed an excellent restoration including fabrication of the 106mm rifle.  Mr. Eaton purchased the vehicle thus becoming the third private party owner.  The 106 rounds were purchased from Beachwood Canvas.

To assist in reducing download time, Thumbnail pictures are below - simply click on the picture to see an enlarged version.  To return to this page, use your Browsers BACK button.

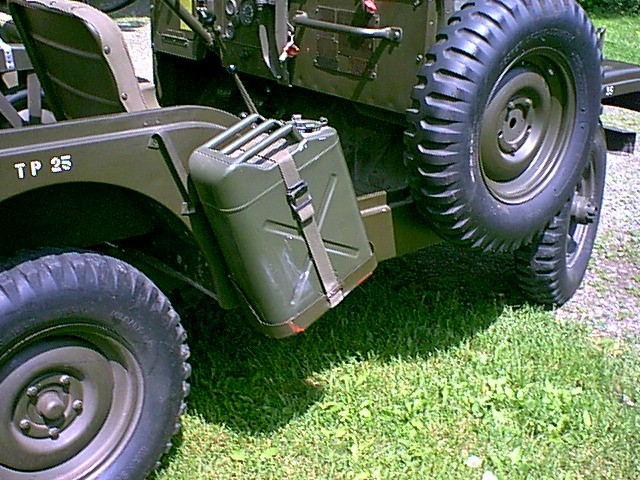

38a1c_t.jpg (143781 bytes) Spare tire location and alternate fuel can mounting

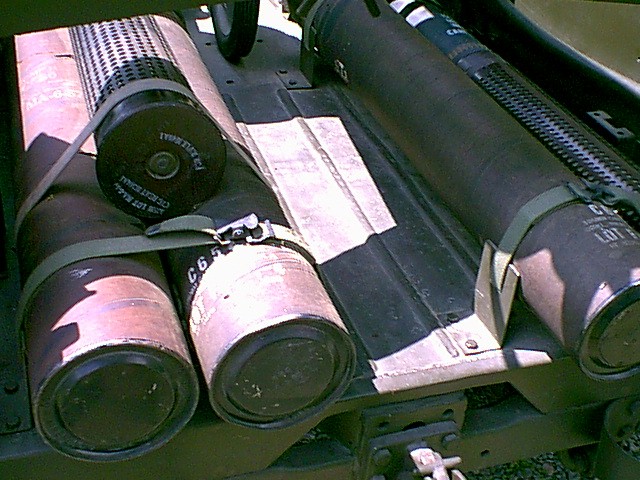

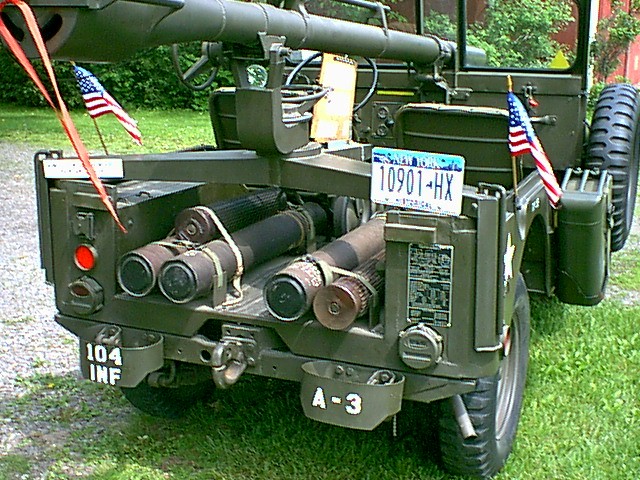

38a1c_k.jpg (148447 bytes) 106mm projectiles and 'mounting tripod' assembly.

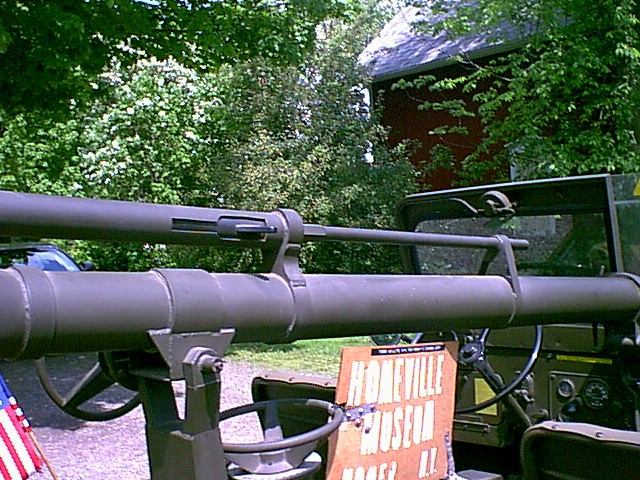

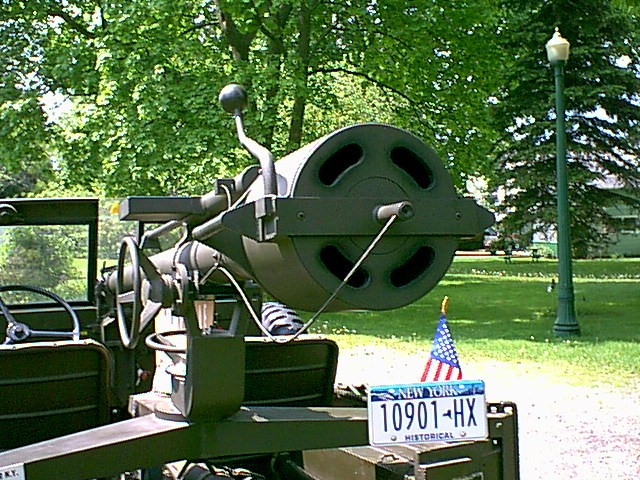

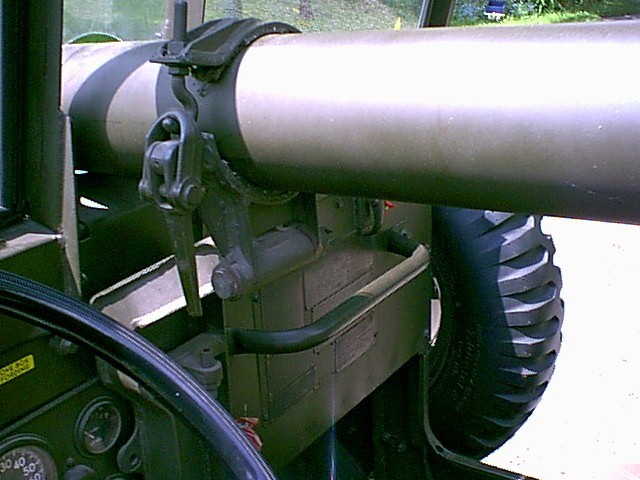

38a1c_l.jpg (82726 bytes) Carry cradle and lock-down mechanism for the 106 barrel.

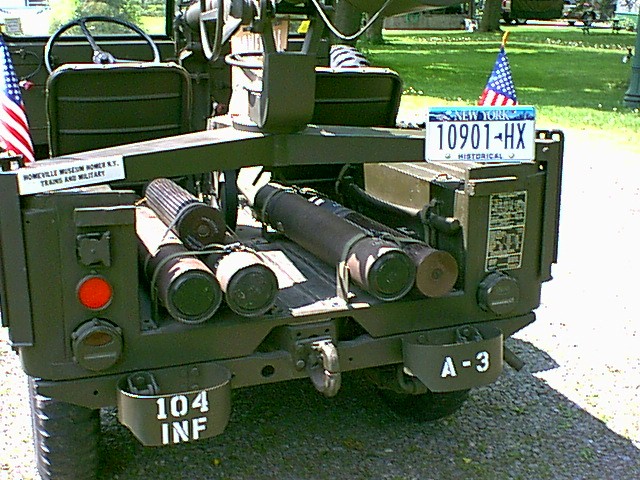

38a1c_o.jpg (130215 bytes) 106mm 'mounting tripod' and 106mm round storage.
38a1c_u.jpg (139472 bytes) 3/4 shot of the 106 mounting 'tripod' assembly.

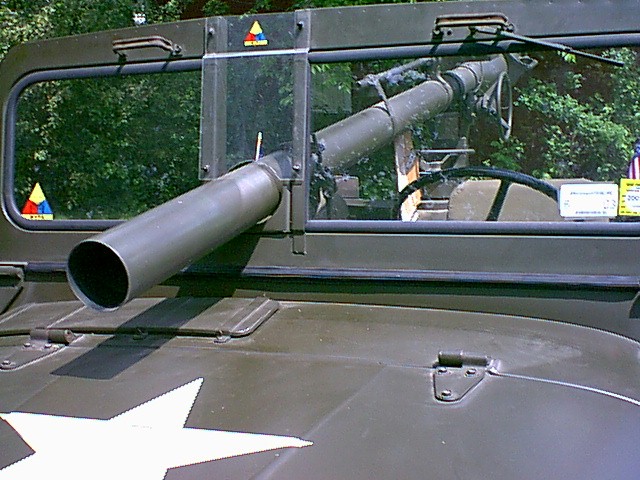

38a1c_v.jpg (111230 bytes) The 'business end' of the 106.  Note the clear plastic piece added by the owner to reduce wind while driving.

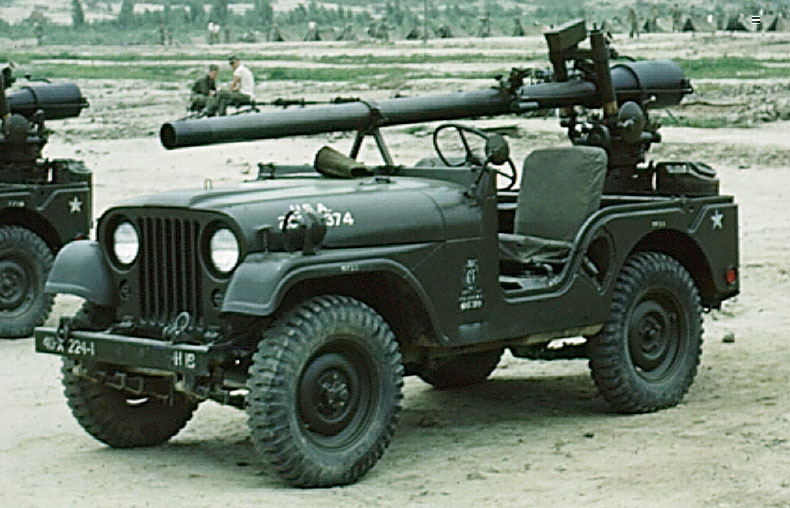

Mr. Jim Kelly for providing his original pictures of the "C" model from when he was in Korea
Mr. Ken Eaton for providing pictures of his restored "C" model featured here.
Mr. Bill Harris for taking the pictures and forwarding them for the site.
