To assist in reducing download time, Thumbnail pictures are below - simply click on the picture to see an enlarged version.  To return to this page, use your Browsers BACK button.

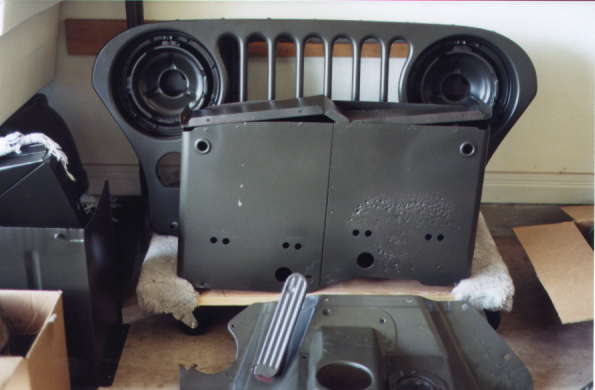

Grill, battery box, tunnel cover and glove box ready for installation.

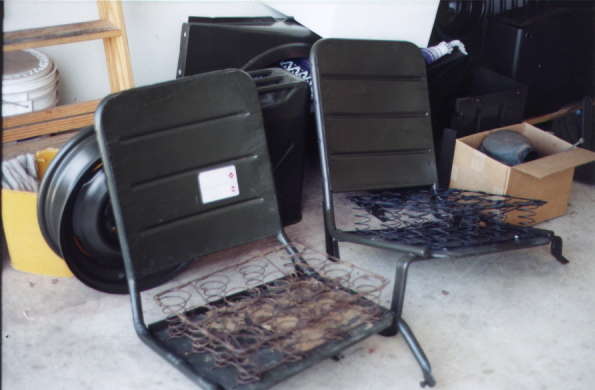

Fresh seat frames ready for installation.  Note the use of the original spring and pan assemblies.  A synthetic horse hair mat was used in place of the original.

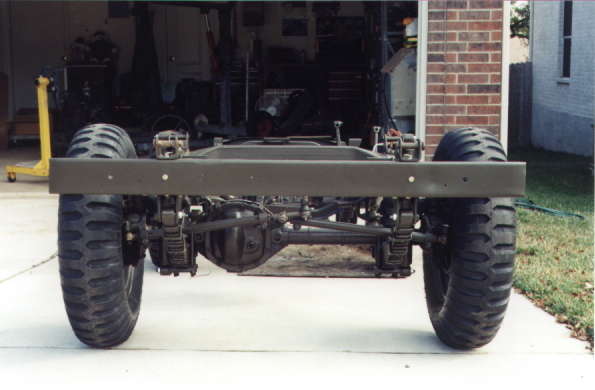

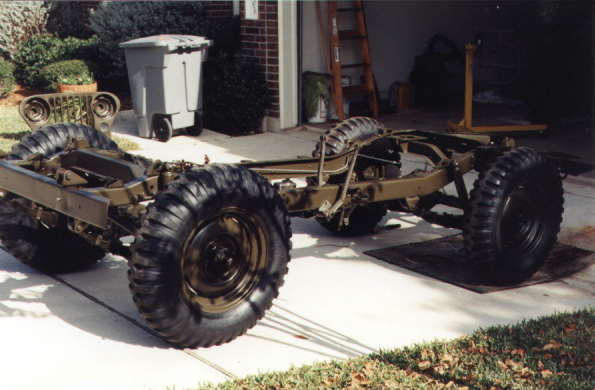

A major milestone in the project - A rolling chassis.  Note the detail in the spring/axle area.  We strived for originality.

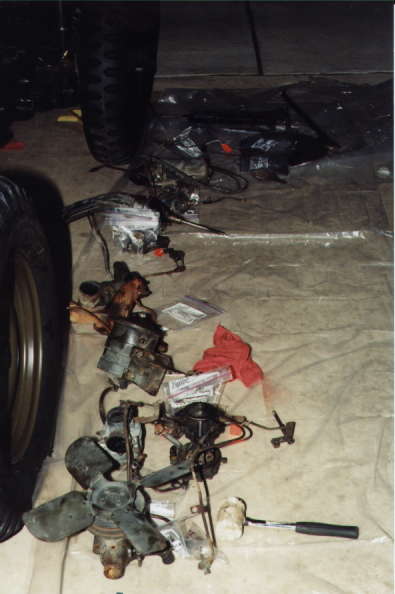

Here are all the miscellaneous parts that came off the engine prior to rebuild.  Most (if not all) was replaced with NOS parts still in wrapping dated mid-50's

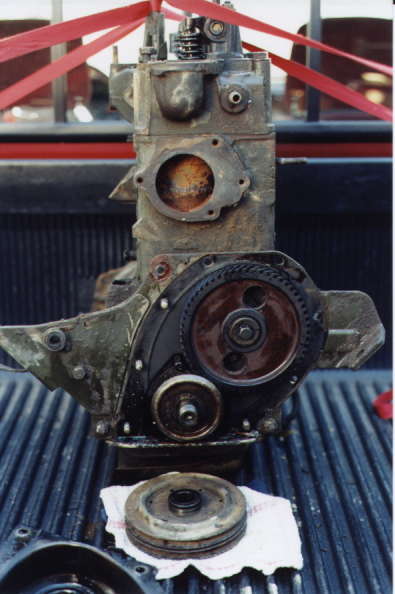

The bare long-block prior to rebuild.  The odometer shows 29,000 miles and we know of one rebuild that was done by the military.  Only minimal wear was noted.

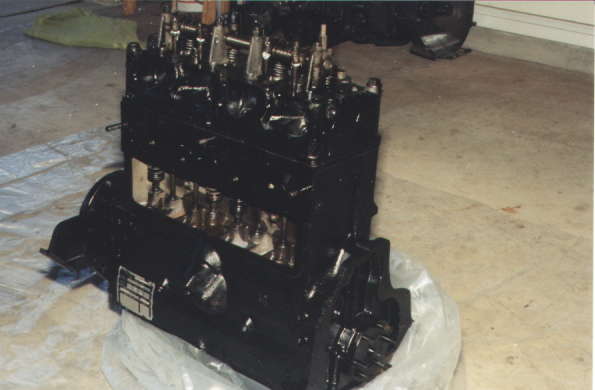

Received the rebuild long block today.  You can still see the US ARMY rebuild tag.  The engine was rebuild top to bottom by a local machine shop.

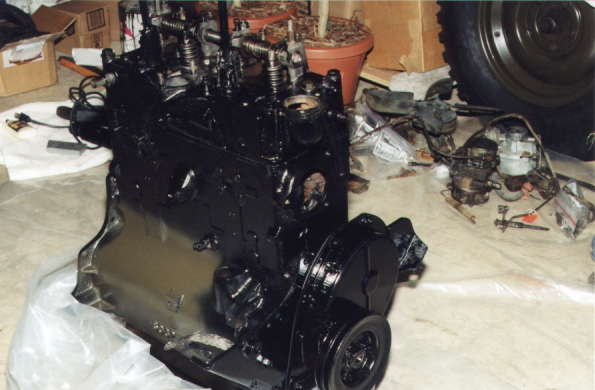

It was however received black and not OD.  Here, I shot a test spot to see how well it would look/work/stick.

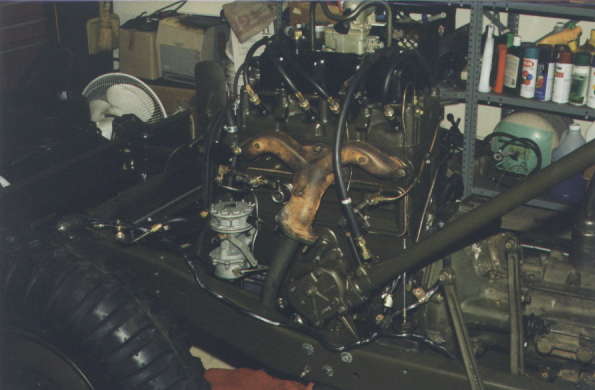

It took me a while to put the engine/transmission/xfer case all together.  Here, it all went into the frame!

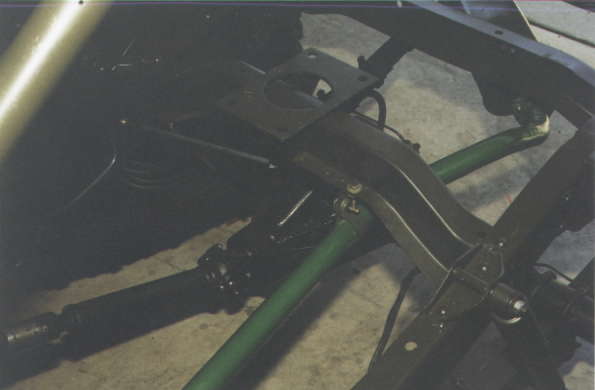

Installed exhaust pipe and muffler.
