Gun Mounts

The following has been taken from:



ORD 3 SNL G-1
Department of the Army Supply Manual

MAJOR ITEMS AND MAJOR
COMBINATIONS
OF
GROUP G

APRIL 1954



Ord Stock # Description

Unit of Issue

Reference Symbols Figure No. Remarks
G2758-8358320 TRUCK, UTILITY, 1/4 ton, 4x4, M38A1 w/e or ea G-758  NX 226
G2758-8358320 TRUCK, UTILITY 1/4 ton, 4x4, w/winch, w/e ea G-758  NX 226
A055-7069767 Armament:

1 MOUNT, truck pedestal, M31C

  A-1  NX ---------- Notes 49 and 44

To assist in reducing download time, Thumbnail pictures are below - simply click on the picture to see an enlarged version.  To return to this page, use your Browsers BACK button.

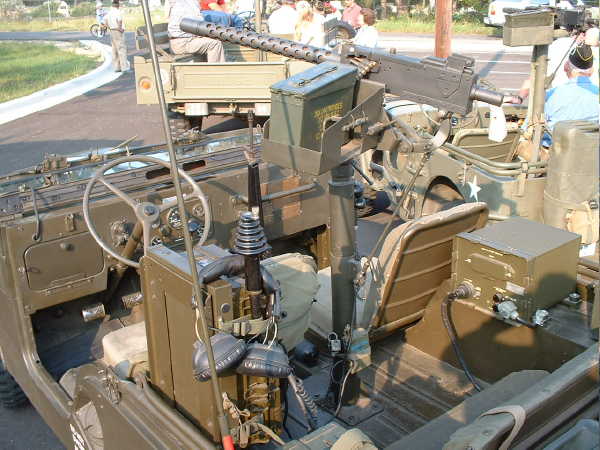

ls_gun.JPG (46968 bytes) Here's an M38A1 with a version of pedestal mount.  Note the traverse locking rod indicating an earlier variant.
